Electric Fence Energizer Brand Comparison: VetraPulse, Gallagher, Speedrite, Patriot, Zareba & Parmak

Not quite. Manufacturers may quote stored joules, output joules, or both, and stored is always the larger figure. When you compare two brands, make sure you are comparing output to output. If a listing quotes only miles or acres, treat it as a marketing figure and look for the joule rating in the manual or spec table. Units tested to IEC 60335-2-76 will state which measurement they are reporting.

Yes. Energizers, conductors and netting are electrically compatible across brands — there is no proprietary connection. What matters is matching output to the conductor: netting and polywire have higher resistance than steel high-tensile wire, so they need more joules for the same length. Mixing brands is normal practice on working farms.

Grounding scales with energizer size, not brand. Small portable units often work with the single rod supplied; larger mains energizers typically need multiple rods spaced several metres apart and linked with insulated cable. Dry, sandy or frozen soil needs more grounding than damp loam. If your fence tests low and the energizer tests fine, grounding is the usual culprit.

Higher output gives you headroom, which is genuinely useful. But an oversized unit costs more, draws more from a battery or panel, and needs more grounding to deliver its rating. The practical answer is to size for your fence plus a margin, and prefer adjustable output if your requirements will change through the season.

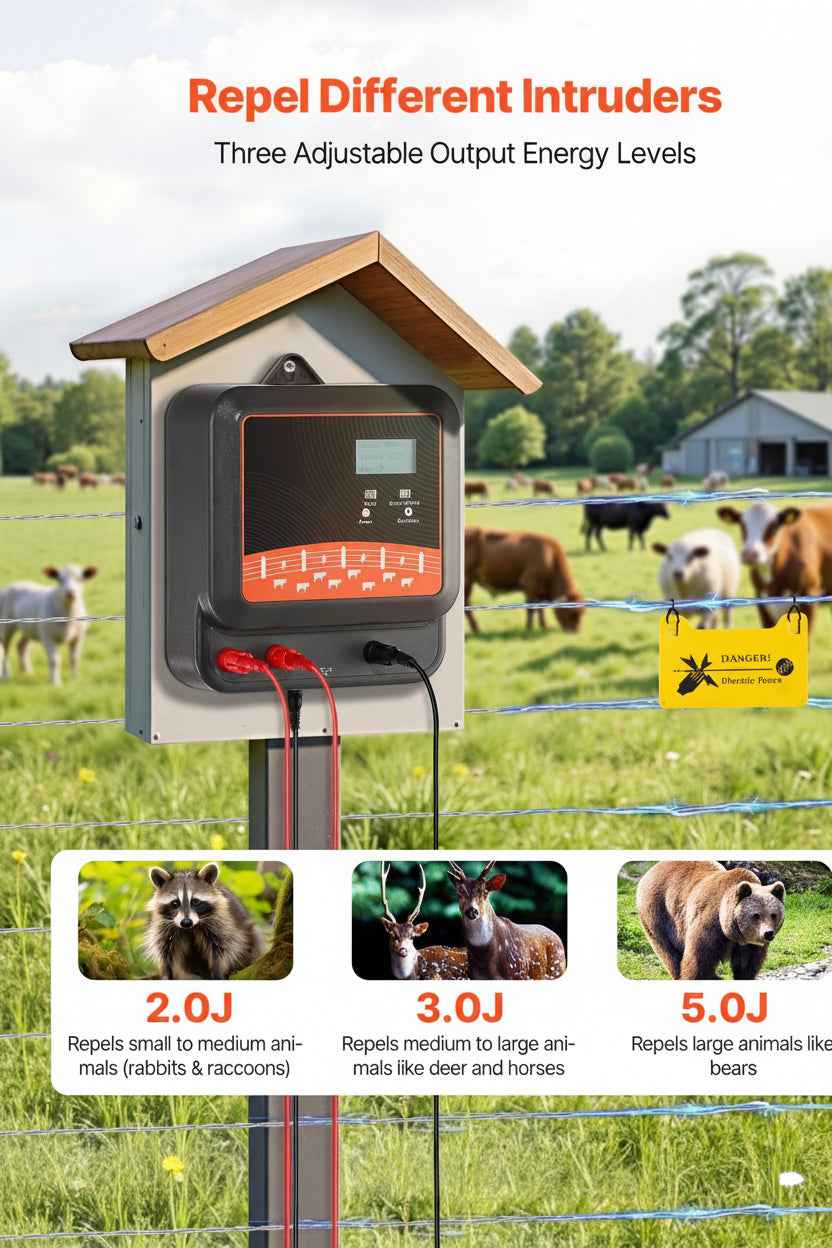

Fence energizers deliver short, pulsed, low-current shocks designed to deter rather than injure, and units built to recognised safety standards are used across species. That said, matching output to the animal is better practice: lower settings are appropriate for poultry and young stock, higher settings for thick-coated livestock and wildlife. Adjustable units let you do that without swapping hardware. Always keep children away from electrified fencing.

Use a fence tester or digital voltmeter at three points: at the energizer terminals, at the midpoint of the run, and at the far end. A healthy fence shows a modest drop along its length. A large drop points to a short, poor joins, or a conductor with too much resistance. Test the ground system too — voltage on the earth stake means your grounding is inadequate.

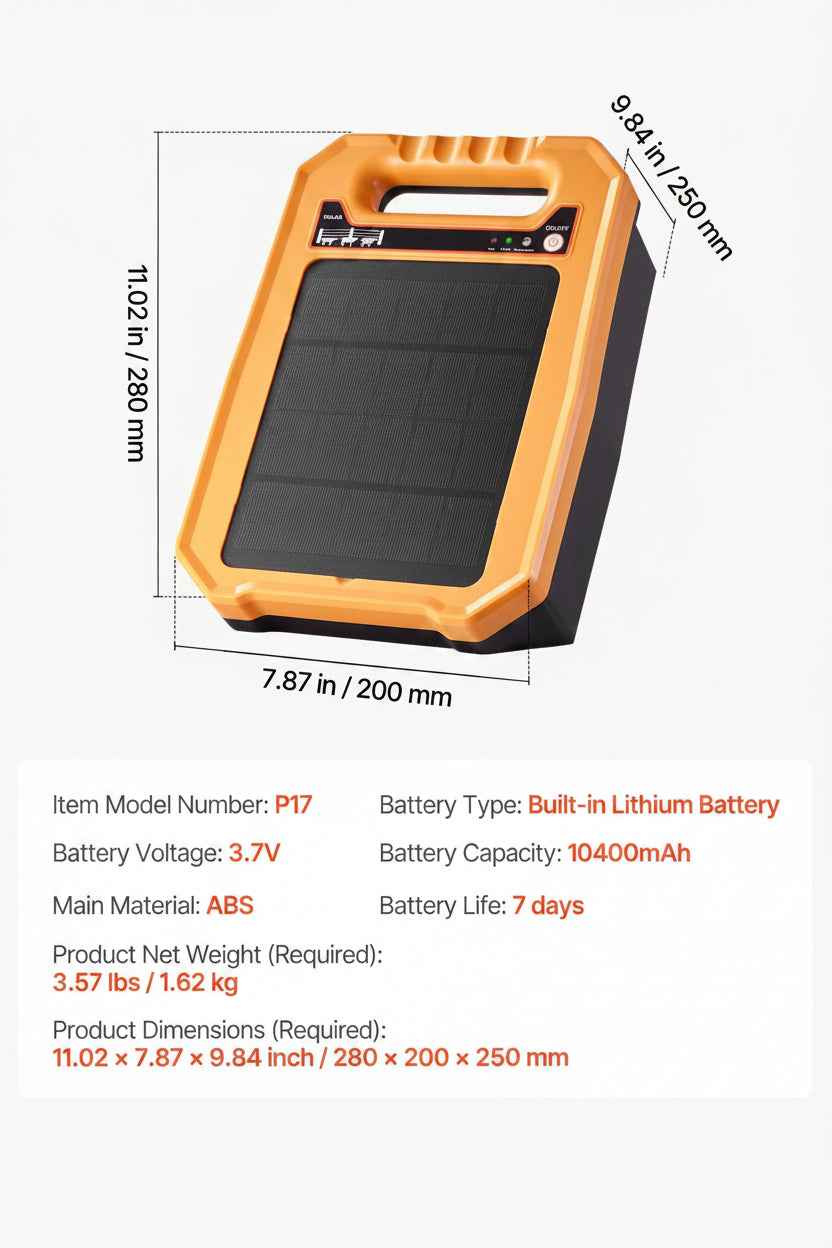

They can, but reserve capacity decides it. Solar units store surplus energy in an internal battery to carry them through low-light days; the more reserve days a unit is rated for, the better it copes. In the northern US, clear the panel of snow and leaves, angle it toward the winter sun, and consider a model specified for cold-weather use. Some brands publish a separate cold-climate variant for exactly this reason.

Not on the same wire. Two units pulsing independently interfere with each other and can damage the hardware. If one energizer cannot cover the whole system, split the fence into electrically separate sections with a cut-out switch between them, and give each section its own energizer and grounding. One larger unit is usually simpler than two smaller ones.

Lightning surge is the most common cause across every brand, followed by water ingress in units without a sealed enclosure, and battery failure in solar and DC models. Fitting a lightning diverter, choosing an IP-rated housing and keeping the fence line clear all extend service life more than brand choice does.

A well-grounded, surge-protected unit commonly runs for many years — owners routinely report a decade or more from quality energizers, and several manufacturers back this with multi-year warranties. Consumable parts are the limiting factor: solar batteries typically need replacing well before the electronics fail, which is why replaceable battery packs and available spare parts are worth checking at purchase.

It is a useful filter. IEC 60335-2-76 is the international safety standard for electric fence energizers, and UL listing is the common US mark. A unit that names its standard is telling you its output has been measured against a defined method, which makes its published joule figure more comparable. Unbranded units that publish no standard are the hardest to evaluate.

It depends on how far your fence is from your door. If you walk past the energizer daily, a simple indicator light is enough. If the fence protects poultry overnight or sits across a paddock you visit twice a week, a live voltage read-out and a fault alarm turn a silent failure into an immediate one — which is the difference between a fixed short and a lost bird.
